C&I ESS

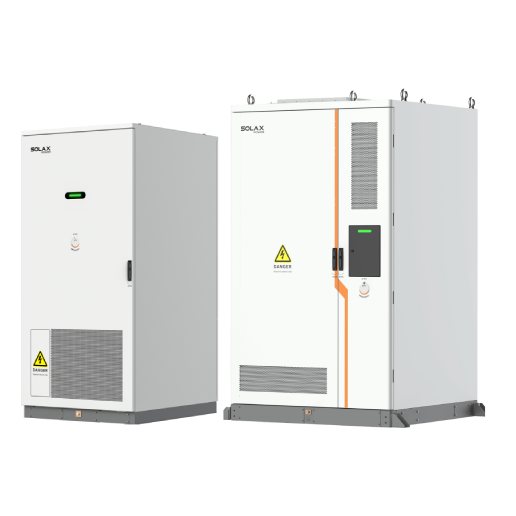

ESS-TRENE 261kWh
-

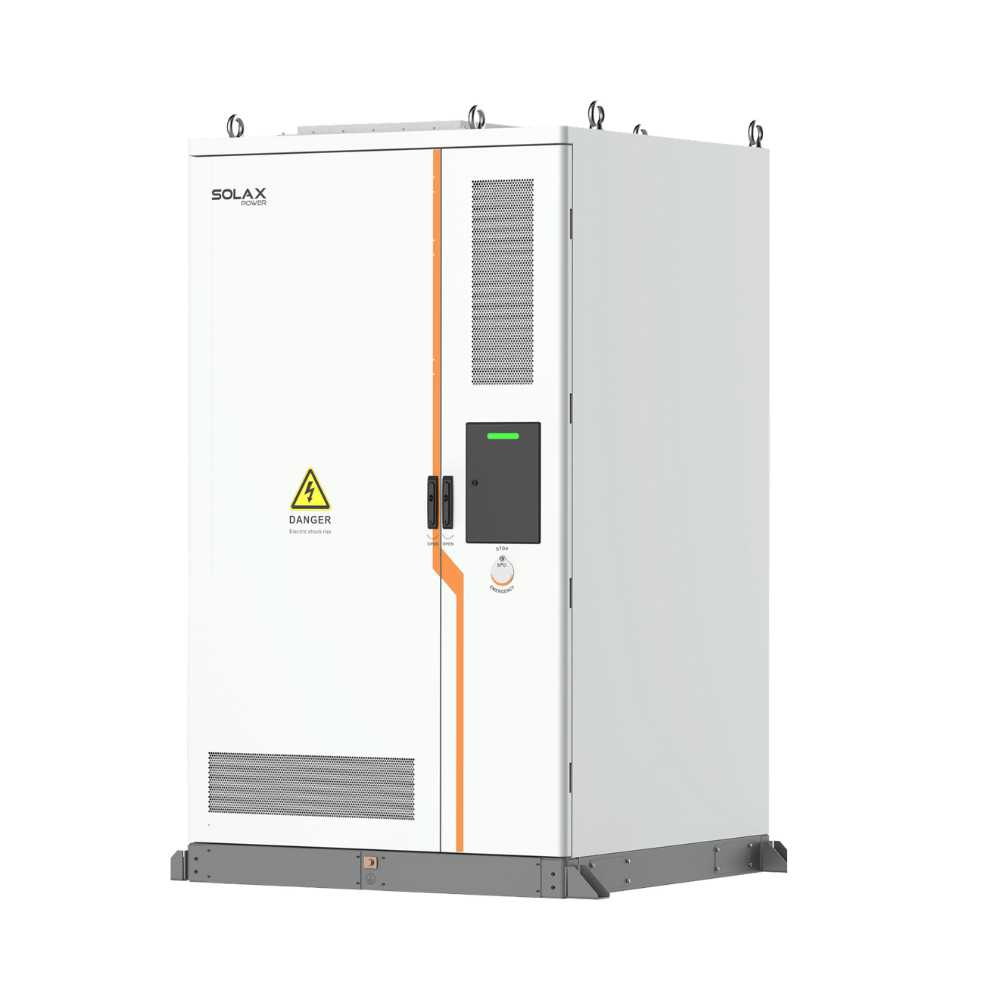

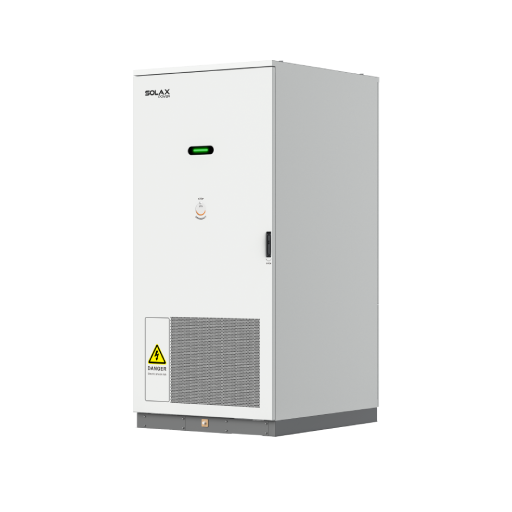

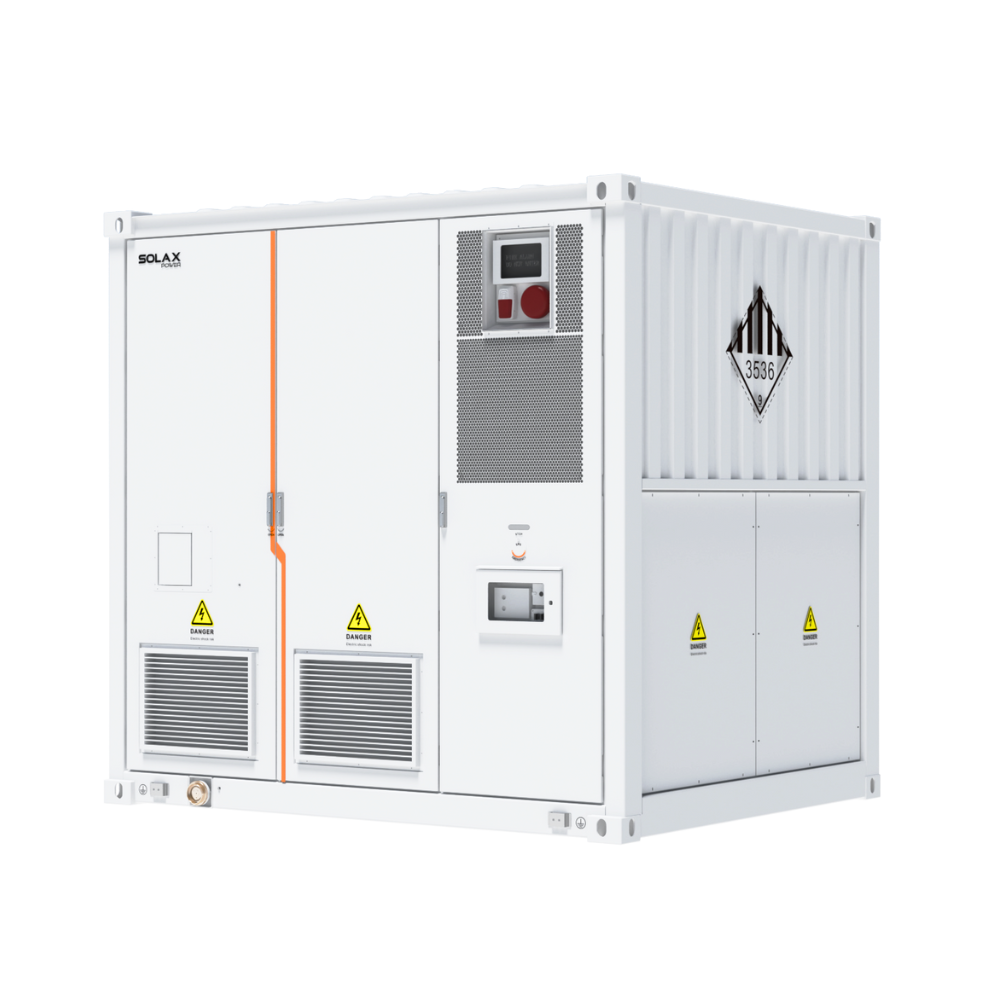

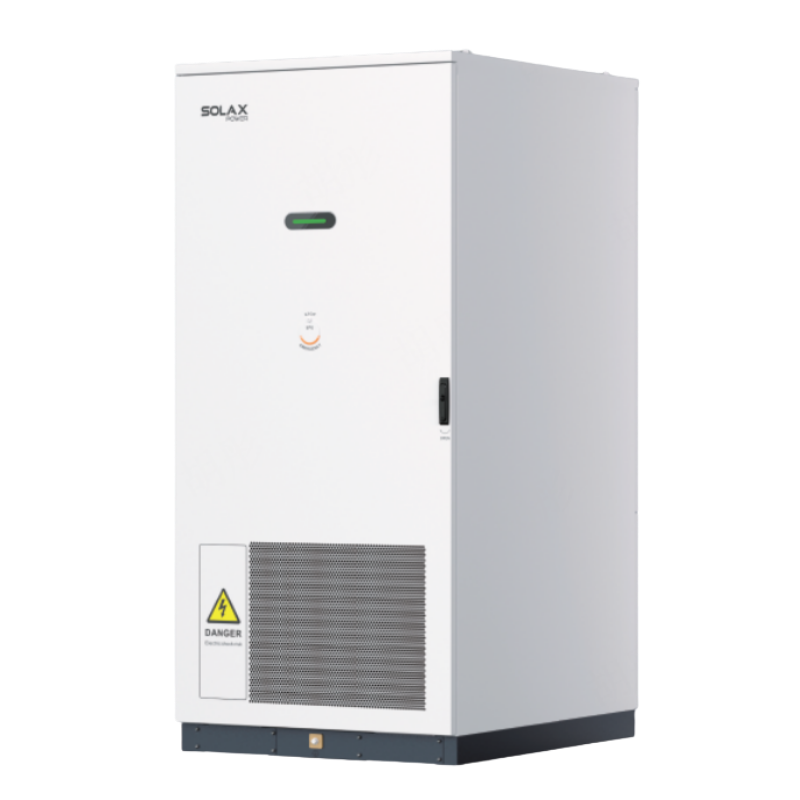

Single Cabin: 99.9kW/125kW | 261kWh Double Cabin: 125kW | 261kWh
The ESS-TRENE energy storage system, available in Single and Double Cabin configurations, is powered by SolaX Cloud for stable, intelligent operation without multi-vendor compatibility risks. The Single Cabin (99.9kW/125kW | 261kWh)—including the Asia/Africa-tailored ESS-TRENE-P99-125B261L—features a modular, plug-and-play design, ≥90% RTE, and AI-driven unmanned management. The Double Cabin (125kW | 261kWh) delivers MWh-scalable power with premium LFP batteries, robust IP protection, VPP-readiness, and on/off-grid support. Both models ensure ultimate reliability through advanced multi-level fire suppression, real-time cell monitoring, and adaptive energy optimization to maximize ROI and minimize operational costs.
-
Ver vídeo
Product Advantage
Built entirely on full-stack, self-developed 3S technology (BMS, EMS, PCS), the ESS-TRENE system eliminates multi-vendor compatibility risks to guarantee highly stable operation throughout its entire lifecycle. Exceptional safety is a shared priority, featuring advanced multi-level fire protection designs engineered for timely hazard elimination and precise asset security. Furthermore, seamlessly integrated with the SolaXCloud platform, both configurations unlock intelligent energy management and comprehensive remote monitoring. This powerful combination enables adaptive optimization strategies that not only maximize user yields but also significantly reduce ongoing operation and maintenance costs.
High Performance
Premium LFP battery with guaranteed quality
High power density, compact design
Scalable up to MWh
Optimised space utilisation
Assured Safety
Real-time monitoring of the entire battery cell, with a 7-day advance warning of thermal runaway
Multilevel fire safety surplus design, timely firefighting, and elimination of explosions
4+1 Fire safety design secures minimal risk and loss
Advanced fault detection and response
Intelligent Design
Equipped with the SolaX AI Cloud platform, adaptive optimization strategies maximize user benefits
Supporting a variety of C＆I energy storage scenarios
Flexible Adaptability
Modular integrated design, factory pre-installation and debugging
Plug and play on-site, convenient connection, simple configuration
Multiple machines installed seamlessly side by side, flexible deployment, and elastic expansion
Product Parameters
-
TRE261-2A-
AC INPUT & OUTPUT (ON-GRID)
Rated output power
125 kW
Rated AC voltage
3 / N / PE, 220 / 380 a.c. V
3 / N / PE, 230 / 400 a.c. V
Rated AC frequency
50 Hz / 60 Hz
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
261 kWh
Nominal voltage
832 d.c. V
-
GENERAL INFORMATION
Dimensions (W×D×H)
1090 × 2360 × 1350 mm
Weight
2450 kg
Operating temperature range
-30 ~ 55°C (＞45℃ derating)
Max. operation altitude
3000 m
Cooling concept
Liquid cooling
Ingress protection
IP55
If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
-
TRE261-2D-
AC INPUT & OUTPUT (ON-GRID)
Rated output power
99.9 kW
Rated AC voltage
3 / N / PE, 220 / 380 a.c. V
3 / N / PE, 230 / 400 a.c. V
Rated AC frequency
50 Hz / 60 Hz
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
261 kWh
Nominal voltage
832 d.c. V
-
GENERAL INFORMATION
Dimensions (W×D×H)
1090 × 2360 × 1350 mm
Weight
2450 kg
Operating temperature range
-30 ~ 55°C (＞45℃ derating)
Max. operation altitude
3000 m
Cooling concept
Liquid cooling
Ingress protection
IP55
If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
-
TRENE-P124B261L-E-
AC SIDE (ON-GRID)
Rated AC power
124.9 kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
Rated AC frequency
50 Hz / 60 Hz
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
261 kWh
Rated battery voltage
832 V
-
GENERAL INFORMATION
Dimensions (W×D×H)
1350 × 2355 × 1350 mm
Weight
2810 kg
Operating temperature range
-30 ~ 55°C (＞45℃ derating)
Max. operation altitude
3000 m
Cooling concept
Liquid cooling
Ingress protection
IP55
If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
-
TRENE-P125B261L-E-
AC SIDE (ON-GRID)
Rated AC power
125 kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
Rated AC frequency
50 Hz / 60 Hz
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
261 kWh
Rated battery voltage
832 V
-
GENERAL INFORMATION
Dimensions (W×D×H)
1350 × 2355 × 1350 mm
Weight
2810 kg
Operating temperature range
-30 ~ 55°C (＞45℃ derating)
Max. operation altitude
3000 m
Cooling concept
Liquid cooling
Ingress protection
IP55
If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
